SCP500 / 800 AOV Control Panel
Email info@smoke-vent-systems.com or call now on 01425 473537
Common Use:
The new SCP500/800 single-zone control unit is UK designed and manufactured. It is a perfect choice for stairwell applications with a single AOV.
This panel is currently only sold by SVS Ltd. for installation by our engineers but will be offered for supply only shortly.
Using MODBUS technology, up to Thirty-One (Thirty if HMI-SCP touchscreen user interface is connected in same network) SCP500/800’s can be networked to form larger multi-zone systems. Making it the ideal choice for larger buildings with smoke ventilation shafts and communal smoke corridors.
The SCP500/800 can also be linked to BMS systems running MODBUS. This can then allow more complex cause and effect strategies to be implemented and controlled from a 3rd party BMS system. Advanced users are no longer locked into ‘standard’ functionality and can enjoy the flexibility to control any element of any SCP as they choose.
Technical Data
| Primary Voltage (Input). | 230V AC |
| Secondary Voltage (Output). | 24V DC |
| Motor Load | 5 AMP / 8 AMP |
| Motor Lines | 1 |
| Inputs For | Manual Call Point, Smoke Sensor, Fire Alarm, BMS, Switch, Thermostat, Wind/Rain Sensor |
| Operating Condition | -5°C – +40°C, max |
| Battery Backup | 72 Hours |
| Size. | 365mm (w) x 353mm (h) x 103mm (d) |
| Protection Type | IP30 |
| Deliver | 1 x Control Unit, 2 x Batteries |
| Battery Size | 2 x 12v 7Ah |
| Certification | EN 12101-10 |
Certification
- Certified and tested in accordance to EN 12101-10
- Tested in accordance to prEN 12101-9
Model
- SCP500 Control Unit 24V 5 Amp
- SCP800 Control Unit 24V 8 Amp
Accessories:
- BG1/S Breakglass Call Point

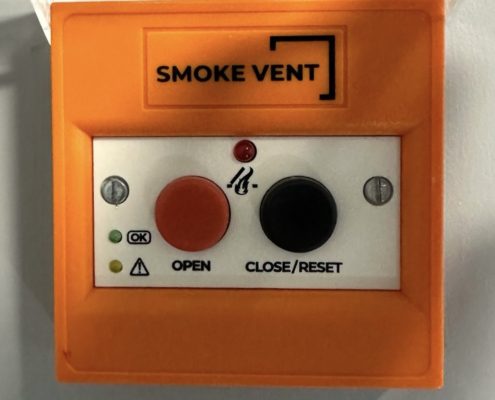

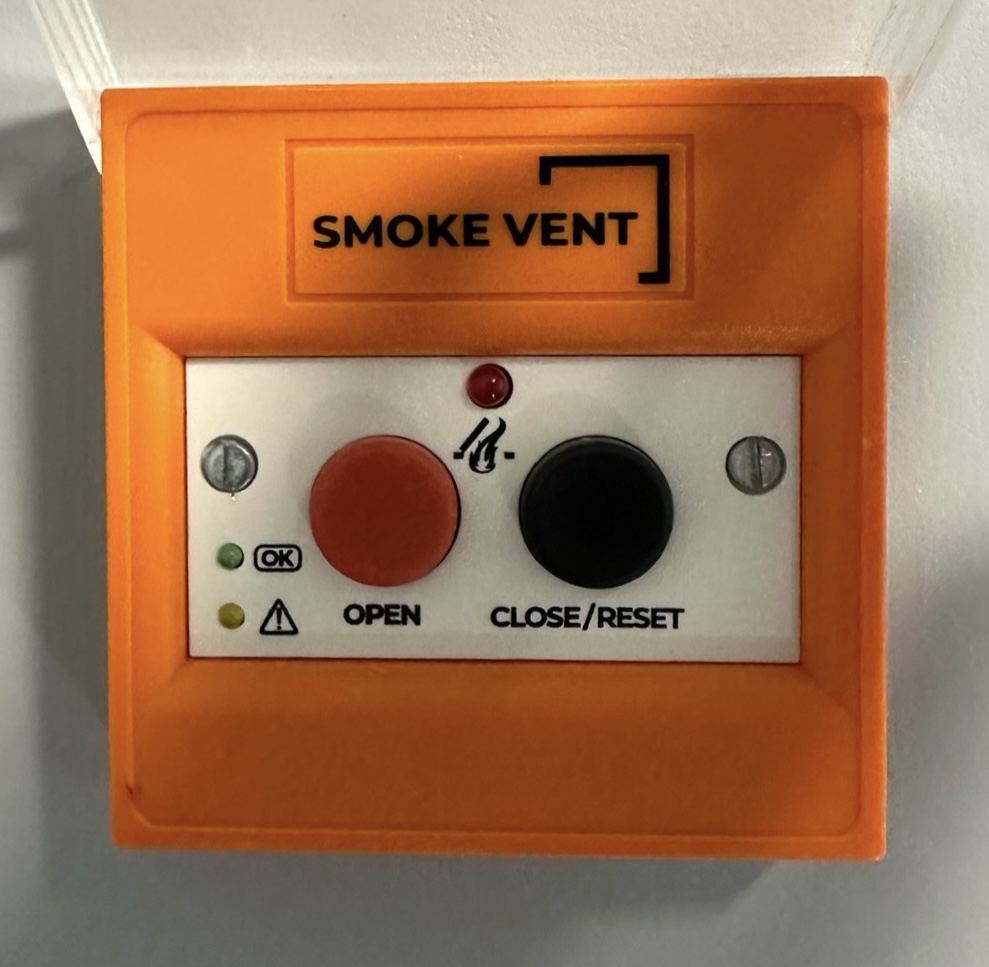

- BG3/FOS Override Switch
- BG4/FOS Override Key-Switch
- S50 Rocker Switch
- RRTKEY Key Switch
- WLA 331 Rain Sensor
- HMI-SCP
